High‑end restaurant: tight deadlines, MEP and finishing interfaces captured to protect brand‑level fit‑out quality
High‑end restaurant: tight deadlines, MEP and finishing interfaces captured to protect brand‑level fit‑out quality.
- LocationMoscow area
- Accuracy±2–3 mm (typical)
- Scope4 work packages
- FormatsE57, RCP, DWG/DXF чертежи
About the project
SPLINE.PRO delivered surveying and 3D capture for this project (Панорамный ресторан, 62 этаж небоскрёба). Typical scope: Laser scanning, Measured drawings, Фототур (панорамный тур).
Client outputs included agreed formats (E57, RCP, DWG/DXF чертежи) and quality checks before handover.
What the client received
- Laser scanning
- Measured drawings
- Фототур (панорамный тур)
- Инвентаризация мебели
- E57
Work in progress
Work stages
Preparation
Defining scope, access, and the agreed deliverable set.

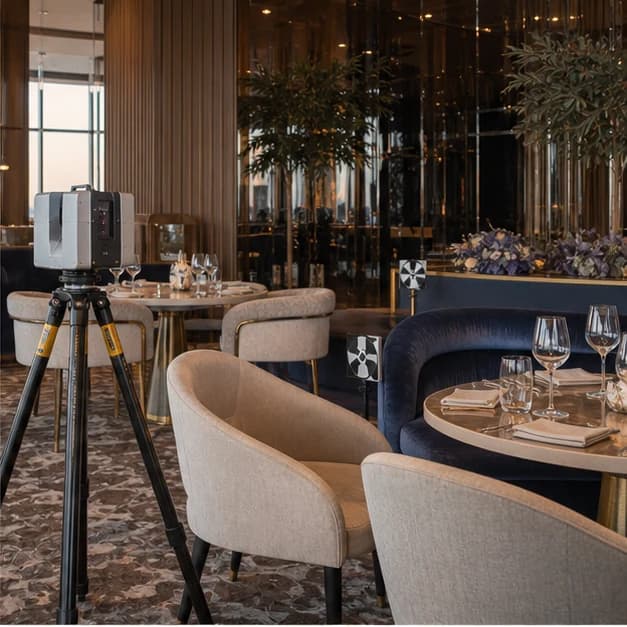

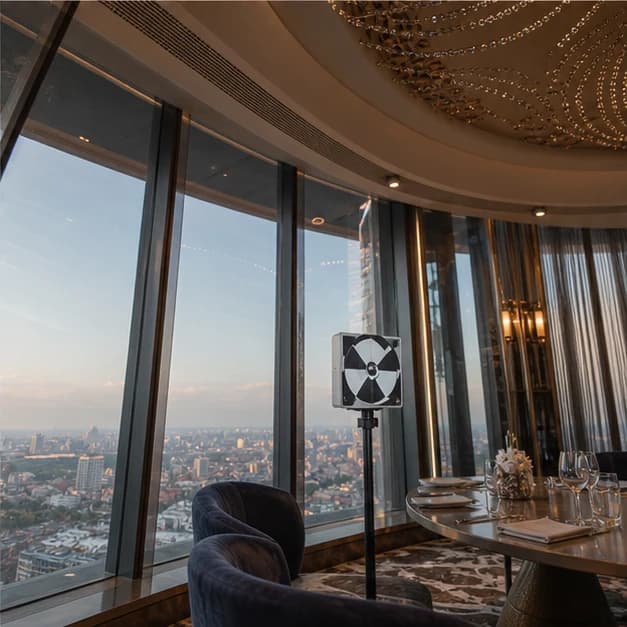

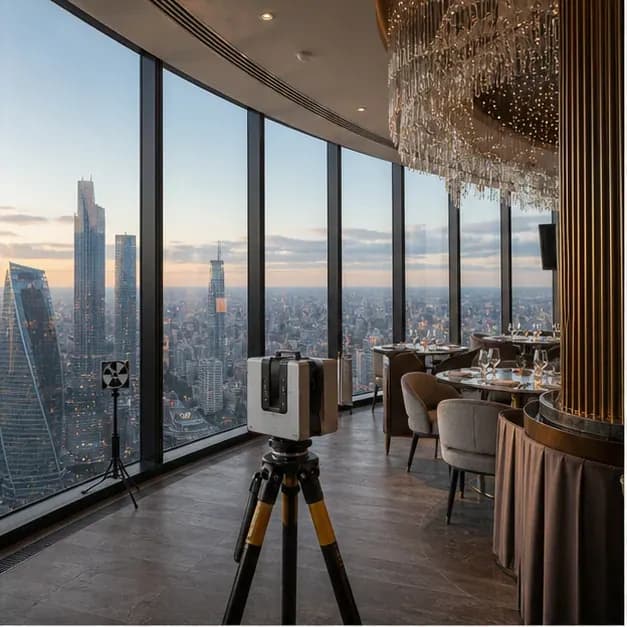

Field work
Scanner capture with overlap and quality control.
Processing
Registration, cleaning, and export to project formats.
Documentation
Plans, sections, and handover to the client in DWG/PDF, etc.
Results

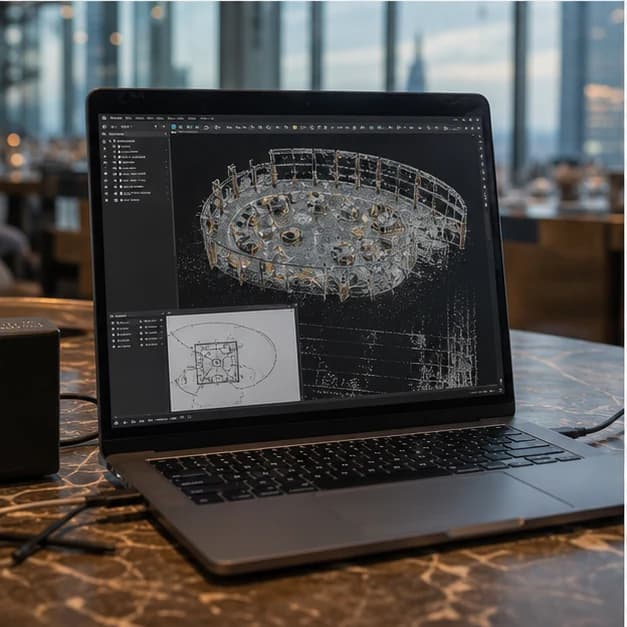

Point cloud and model
Dense point cloud, mesh, and BIM-friendly deliverables as agreed.
Drawings and plans
Floor plans and sections in the agreed scales and layer structure.
Data for your workflow
Handover support and advice on using data in your design tools.
